300A-600A国标/欧标/美标大功率充电桩用液冷线缆接受批量订单


额定电压:1000V AC

电流:300A-600A

使用环境温度:-30-50

工作温度:-30-90

最大长度:10m

线缆外径:39mm  35mm  28mm

功率线规格:35mm2

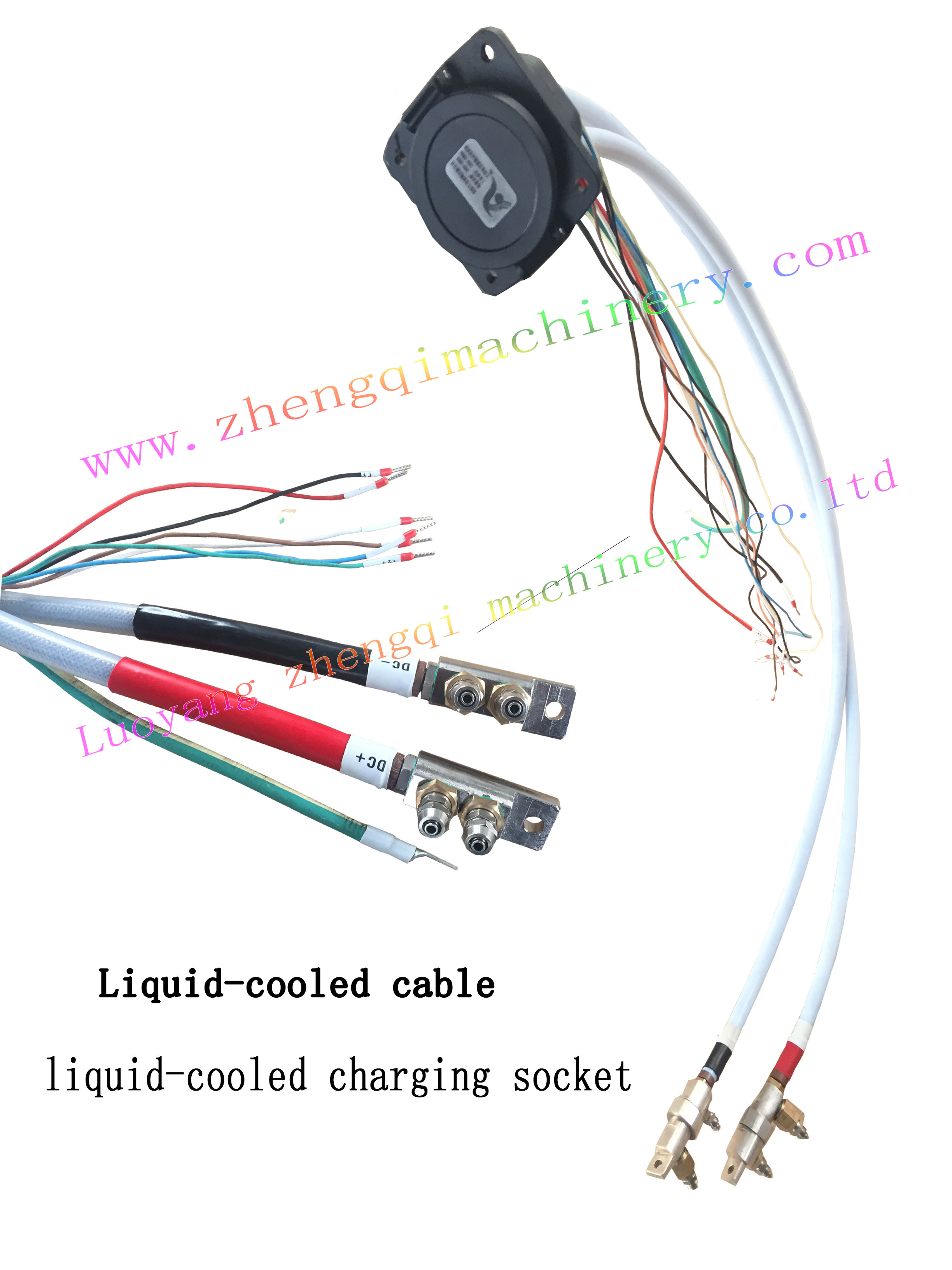

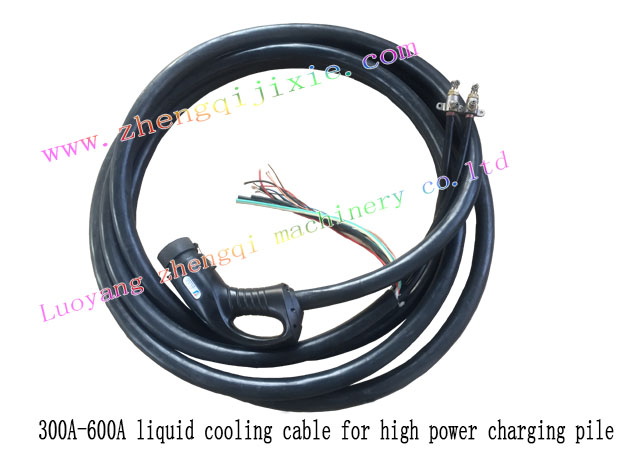

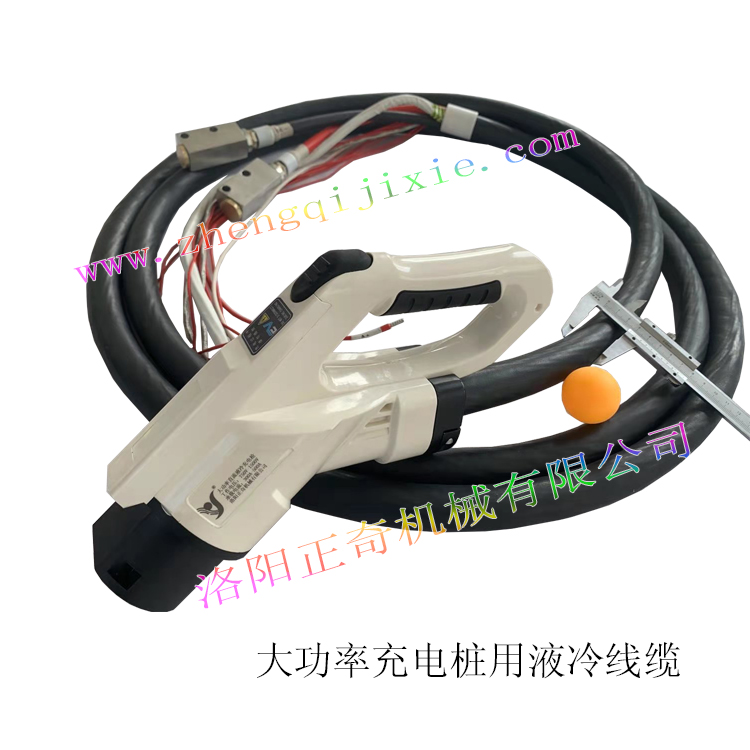

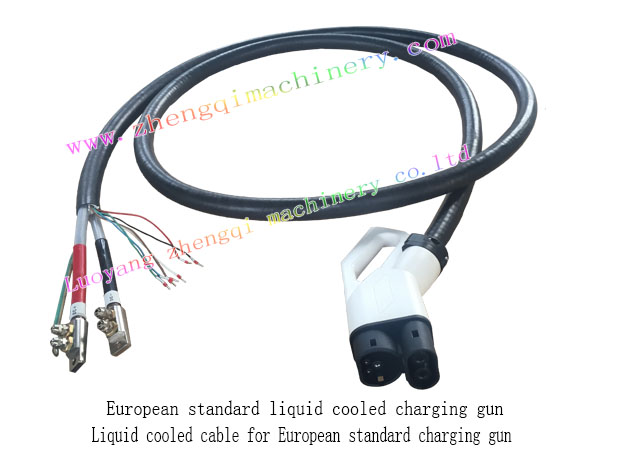

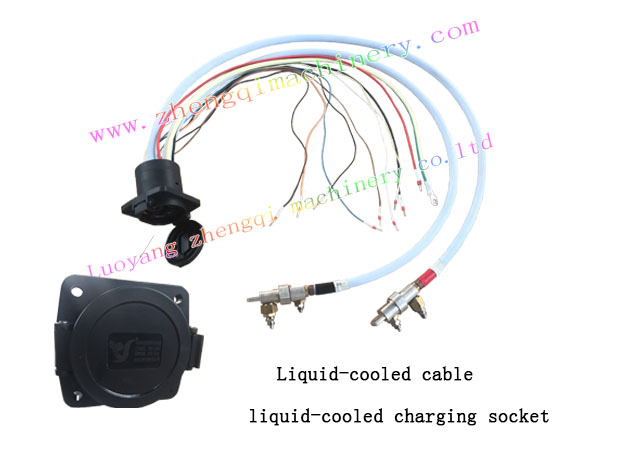

大功率直流充电桩配置的液冷线缆,它是一根集成电缆,外径尺寸为39mm,符合人体工程,方便使用。内含液冷电缆DC+,DC-各一根,还有多根信号线。


The liquid-cooled cable configured for the high-power DC charging pile is an integrated cable with an outer diameter of 39mm, which is ergonomic and convenient to use. It contains one liquid-cooled cable DC+, one DC-, and multiple signal wires.

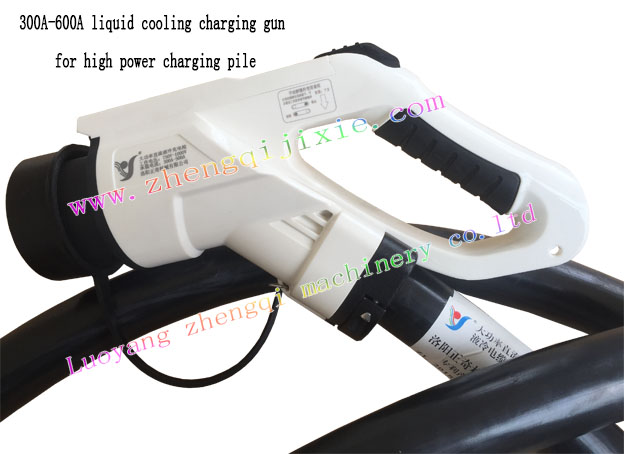

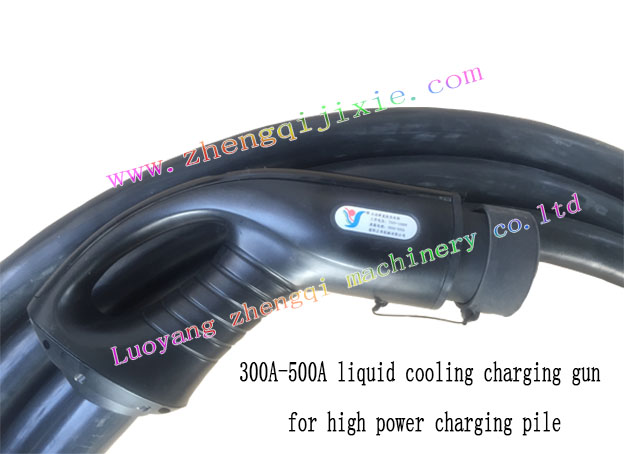

DC+,DC-液冷电缆的结构相同,它的一端是电极,该电极连接大功率直流充电桩电源;它的另一端是液冷充电枪的端子,液冷充电枪DC+,DC-的端子的内部是空腔结构,它和液冷线缆密封连接。

The structure of the DC+ and DC- liquid-cooled cables is the same. One end of it is an electrode, which is connected to the high-power DC charging pile power supply; the other end is the terminal of the liquid-cooled charging gun, and the terminals of the liquid-cooled charging gun DC+ and DC- The inside is a cavity structure, which is hermetically connected with the liquid-cooled cable.


每个特制液冷端子上同时设置有进液口和出液口,DC+/DC-构成单独的冷却回路,互不干扰。

Each special liquid-cooled terminal is provided with a liquid inlet and a liquid outlet at the same time, and DC+/DC- forms a separate cooling circuit, which does not interfere with each other.

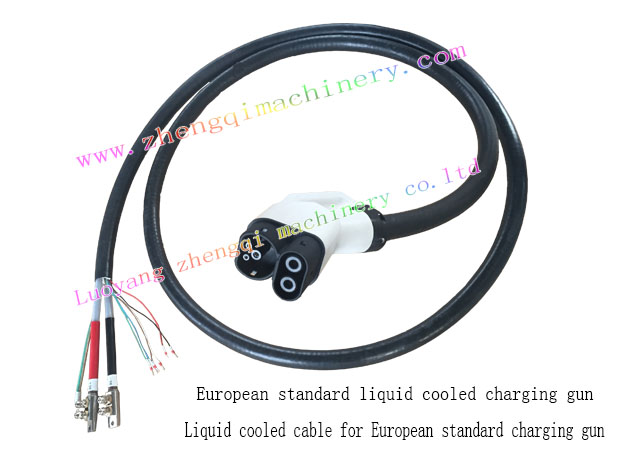

目前,公司生产的液冷线缆、液冷充电枪有国标、欧标、美标,输出电流为300A-600A.

At present, the company’s liquid-cooled cables and liquid-cooled charging guns have national, European, and American standards, and the output current is 300A-600A.
